Voltage Regulator With Op Amp. It has short circuit protection. Apart for being a regulator, the same circuit is also a voltage stabilizer, able to stabilize voltage at a grade better than 0.01%.

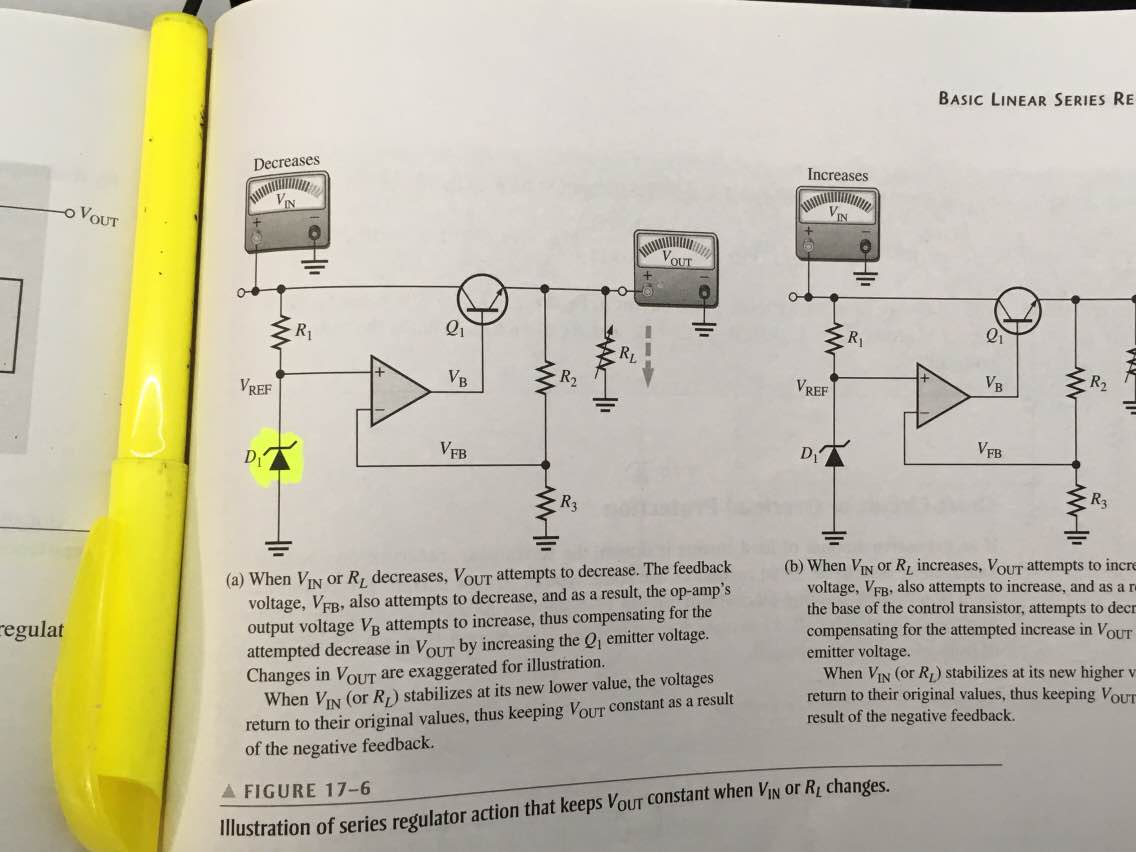

op amp Does the following voltage regulator have a from electronics.stackexchange.com
In addition, if you make r 1 a variable resistor, then the output voltage could be. Apart for being a regulator, the same circuit is also a voltage stabilizer, able to stabilize voltage at a grade better than 0.01%. A voltage regulator circuit using an op amp, emitter follower transistor, and zener diode, is simple to draw from memory if you understand the working principle.
Ic Voltage Regulators Operates Basically In The Same Manner As Discrete Circuit Regulators.
It is a linear regulator. It has short circuit protection. There is always a reference voltage and an error amplifier that compares the reference voltage to (a sample of) the output voltage.
Both Circuits Are Used To Identify The Circuit Components That Compose Each Of The Major Functional Blocks Of A Voltage Regulator And To Explain How These Blocks Interact.
A better voltage regulator is shown below: The resulting difference voltage causes the transistor q 1 controls the conduction to compensate the variation of the output voltage. This circuit takes a variable input voltage and outputs a stable voltage,regardless of the current required by the load.
Two Cautions On This Configuration:
The voltage drop across the shunt is fed into the operational amplifier which then compares it to a. Here, we explain the general concept of using an operational amplifier for voltage regulation. Resistor r1 and r2 is the voltage divider network which is used to sense any change at the o/p.
The Zener Diode Does Not Have To Absorb Wide Variations In Load Current.
A voltage regulator circuit using an op amp, emitter follower transistor, and zener diode, is simple to draw from memory if you understand the working principle. The error amplifier then drives the pass element to control the output. The circuit provides good voltage regulation for inputs from about 9.5 v to over 14 v, the output being held at the regulated value of about 9.3 v.
The Error Detector Compares The Feedback Voltage With A Zener Diode Reference Voltage.
Copies (4) series voltage regulator using op amp. It compares the part of the output voltage obtained from potential divider circuit as a feedback with the reference voltage generated by the zener diode vz. Series voltage regulator using op amp.
